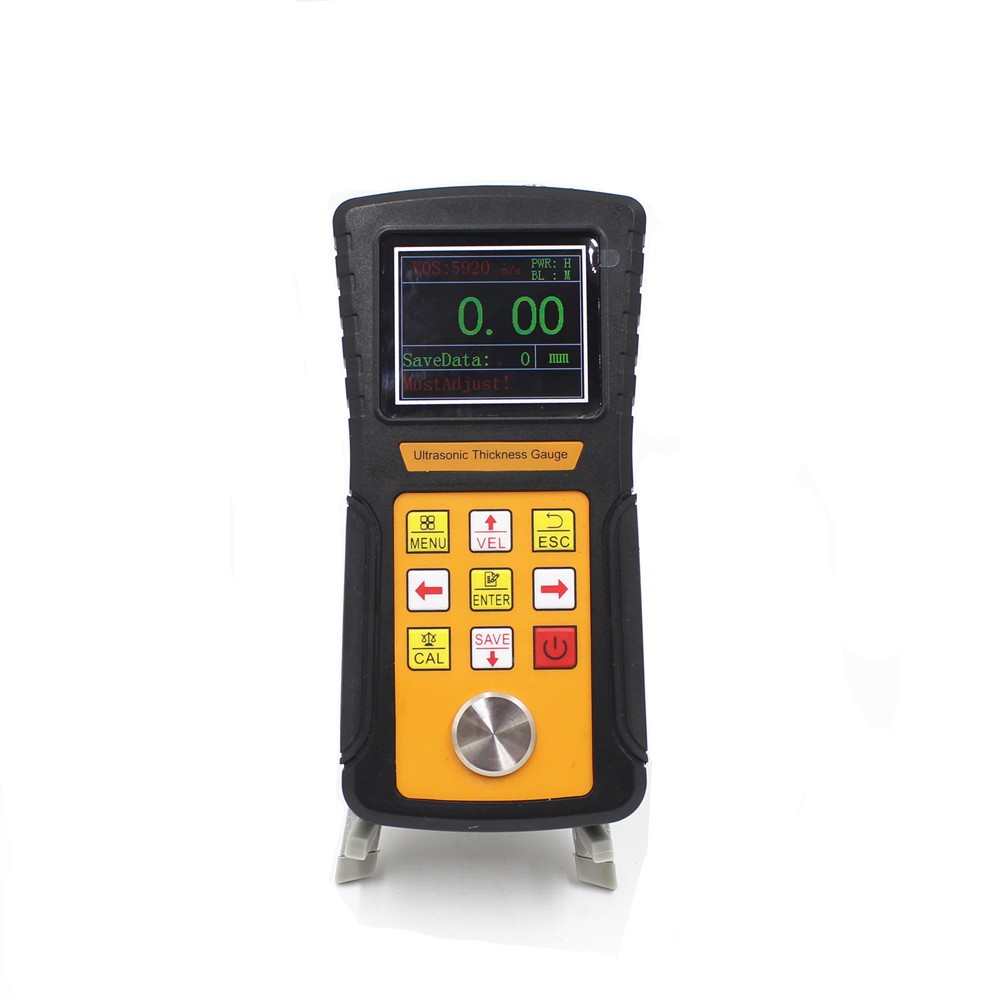

JT160 NDT Ultrasonic Thickness Gauge
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
|
Technical Specification
|
|
|
Display
|
128*64 LCD with LED backlight
|
|
Measuring Range
|
(0.75~600)mm(Steel)
|
|
Velocity Range
|
(1000~9999) m/s
|
|
Resolution
|
0.01mm
|
|
Measuring accuracy
|
±(0.5%H+0.04mm)
|
|
Measurement cycle
|
Single point measurement 6 times/per
|
|
Calibration Function
|
Zero calibration and two-point calibration
|
|
Storage
|
3000 values of saved data
|
|
Power Source
|
2pcs 1.5V AA size
|
Main Functions:
1. Capable of performing measurements on a wide range of material, including,metals,plastic,ceramics,composites,epoxies,glass and other ultrasonic wave well-conductive materials.
2. Can collocate variety different frequencies,wafer sizes of probes;
3. Sound Velocity Calibration function as a known thickness;
4. Coupling status indicator showing the coupling status;
5. EL backlight, and convenience to use under dark environment;
6. Have the battery indicator function, can real-time display the remaining power
7. Auto sleep and auto power off function to conserve battery life;
Smart, portable,high reliability, suitable for bad environment, resist to vibration, shock and electromagnetic interference.

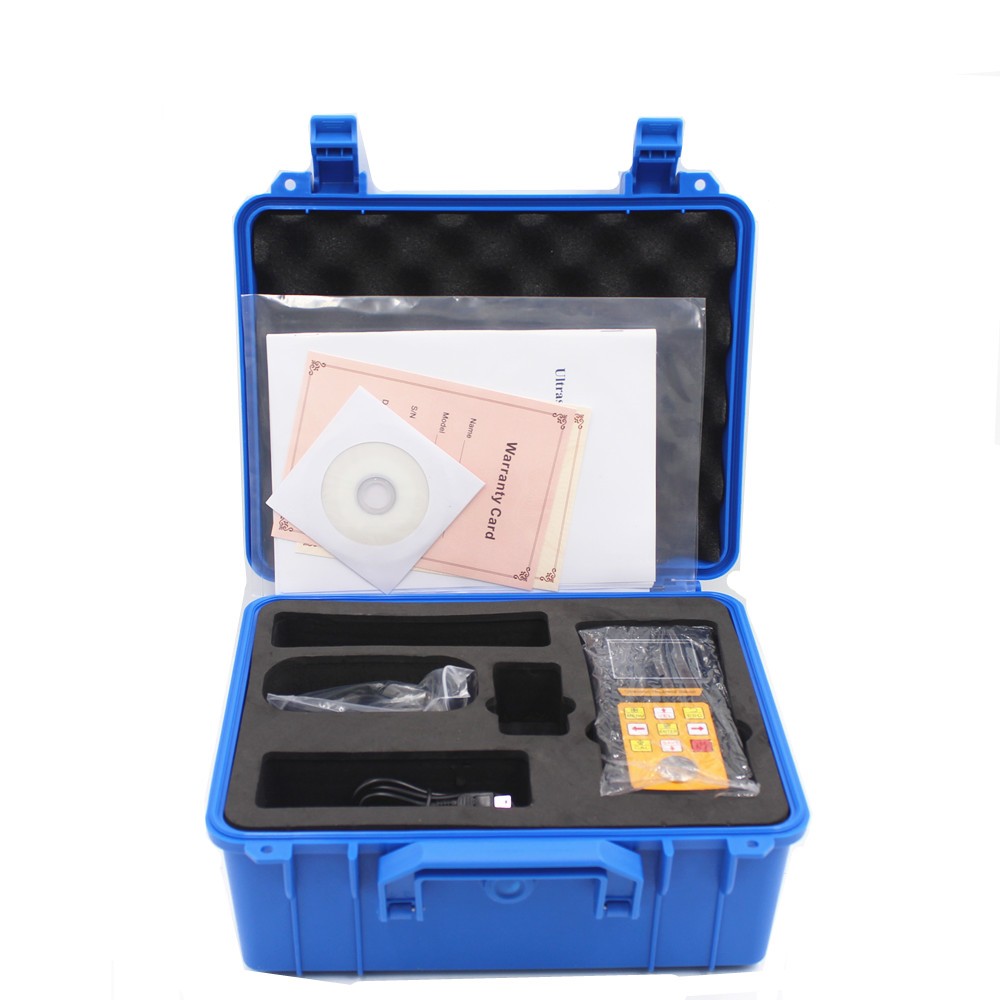

Standard Configuration:
|
No.
|
Item
|
QTY
|
|
1
|
Main Body
|
1 set
|
|
2
|

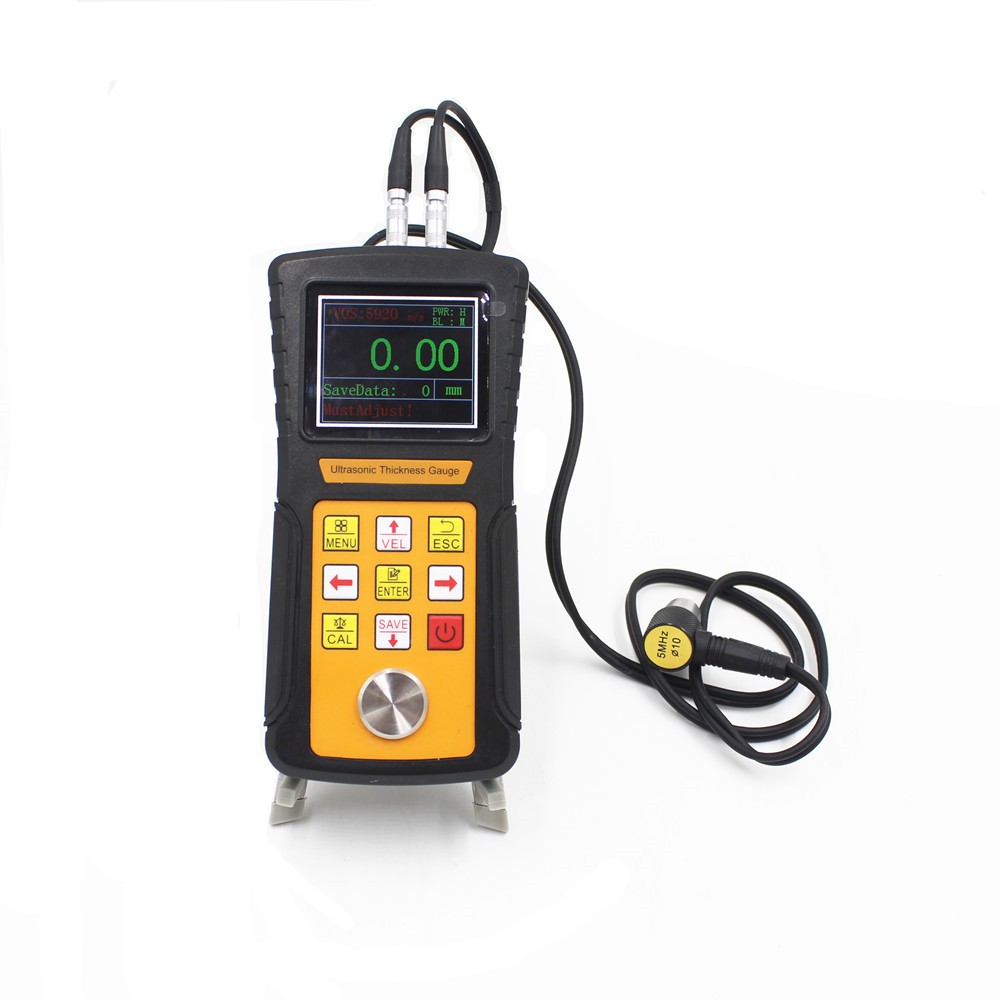

Standard Probe(5MHz,D10mm)
|
1 pc
|
|
3
|
Couplant
|
1 pc
|
|
4
|

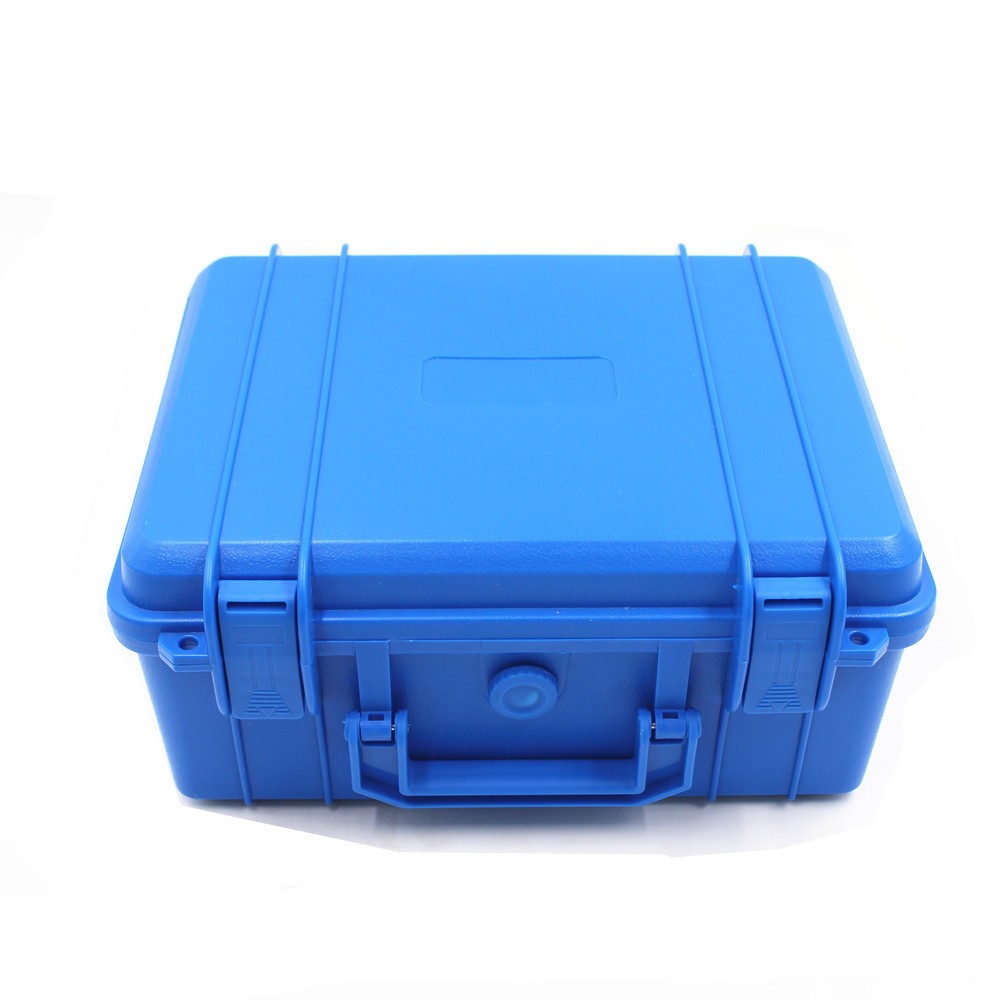

ABS Case
|
1 pc
|
|
5
|
Product Certificate
|
1 pc
|
|
6
|
Warranty Card
|
1 pc
|
|
7
|
Manual
|
1 pc
|
|
8
|
1.5V AA size
|
2 pcs
|
Optional Configuration:
|
No.
|
Item
|
Notes
|
|
1
|
Large diameter probe(2.5MHz)
|
|
|
2
|
Large range probe(2MHz)
|
|
|
3
|
Micro-diameter probe(7MHz)
|
|
|
4
|
High temperature probe(5MHz)
|
|
|
5
|
High temperature couplant
|
|
Packaging
|
|
|
Size
|
28* 25 * 8 cm
|
|
Weight
|
1kg
|
|
Packaging Details
|
The normal package is carton box (Size: L*W*H)
|
|
Shiping Ways
|
|
|
By Express / By Air / By Sea
|
|
